This object is an optional part that helps secure drip line to the nozzle connector of the Float Valve Receiver.

This 3D printable part is provided as-is, without warranty and you are responsible for your own results. By downloading this digital file, you are accepting and agreeing to the terms and conditions of this site and you hold us free of all liability and responsibility for any actions or results or adverse situations created by this printed part.

Version: V8 | File Size: 15kb | Posted: 2/23/2015
3D Design by Mike Adams, the Health Ranger
Revision Notes | Printing Instructions

Creative Commons License
This work is licensed under a Creative Commons Attribution-NonCommercial 4.0 International License. By downloading this innovation, you agree to abide by the license: Creative Commons Attribution-NonCommercial.

About this Part

IMPORTANT: Print this object with the solid cylinder on the build plate and the "feet" sticking up, vertically.

This object is an optional part that helps secure drip line to the nozzle connector of the Float Valve Receiver. The "feet" of this object have been created to allow for slight variations in nozzle diameter and drip line tube thickness.

It is crucial to print this object using filament with some inherent flexibility. ABS and PLA will not work. The ideal filament is T-glase, which retains remarkable flexibility even after cooling.

Click here for detailed assembly instructions (with photos).

How to Successfully 3D Print This Part

Approximate print time = 18 minutes
Filament: Taulman T-glase, any color
Print temperature: 250C
Bed temperature: 0C - 70C
Nozzle size: 0.5mm - 0.7mm (0.4mm nozzle is too small to print t-glase)
Layer height: 0.35mm (do not go below 0.3mm)
Print speed: 25 - 40 mm/s (use 50% for first layer)
Filament flow rate: 90% - 94%
Infill: 100%

DO NOT use ABS or PLA. The model will be too fragile.

Recommended Slicer: CURA

!! IMPORTANT !! You MUST print in a way that allows adequate layer cooling. There are essentially four ways to accomplish this:

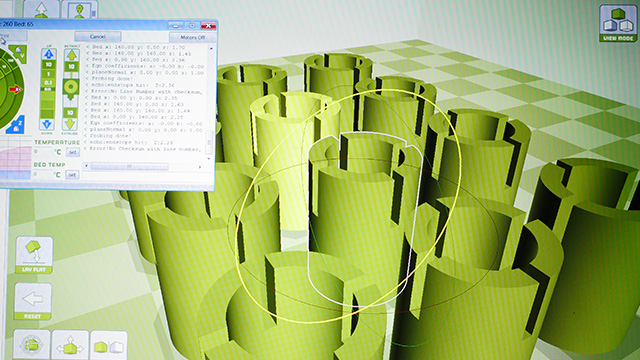

1) Print 3 or more parts at a time so that each part has time to cool before the next layer.

2) Set your slicer to force a layer wait time of 15 seconds or more.

3) Print using a sacrificial cylinder object far away from your primary object, forcing the print head to move a long distance, thereby providing additional cooling time for each layer.

4) Crank up your fan speed to 100% during these layers.
